Description

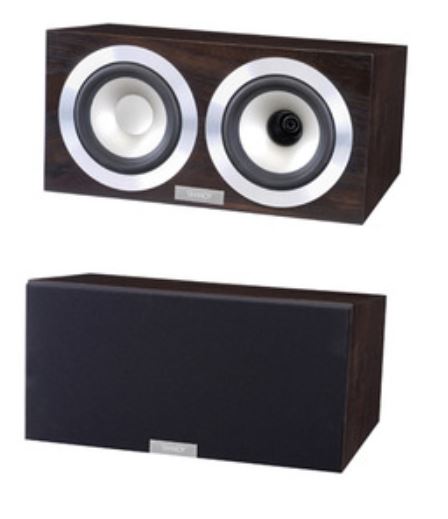

Tannoy Revolution DC4 LCR Speaker in Espresso Finish

A dynamic blend of design and performance set to transform music and movie entertainment in todays homes. Tannoy Revolution DC4 LCR uses latest technologies, engineering principles and cabinet construction combine for a compact, sumptuous loudspeaker with the accuracy, scale and drama of much larger traditional designs.

SPECIFICATIONS:

Enclosure Type: 3 way bass reflex
Recommended Amplifier: 20 – 125 Watts
Power Handling (RMS): 62 Watts
Peak Power Handling: 250 Watts
Frequency Response: 72Hz – 54kHz
Crossover Frequency: 1.5kHz
Crossover Type: Passive low loss 2nd order LF, 1st order HF
Sensitivity: 87dB
Nominal Impedance: 8 Ohms
Drive Units HF: 19mm (0.75″) Titanium domeWith Tulip WaveGuideTM
Bass Driver: 100mm (4″) treated paper pulp cone with Rubber surround.33mm (1.33″) edge wound voice coil
