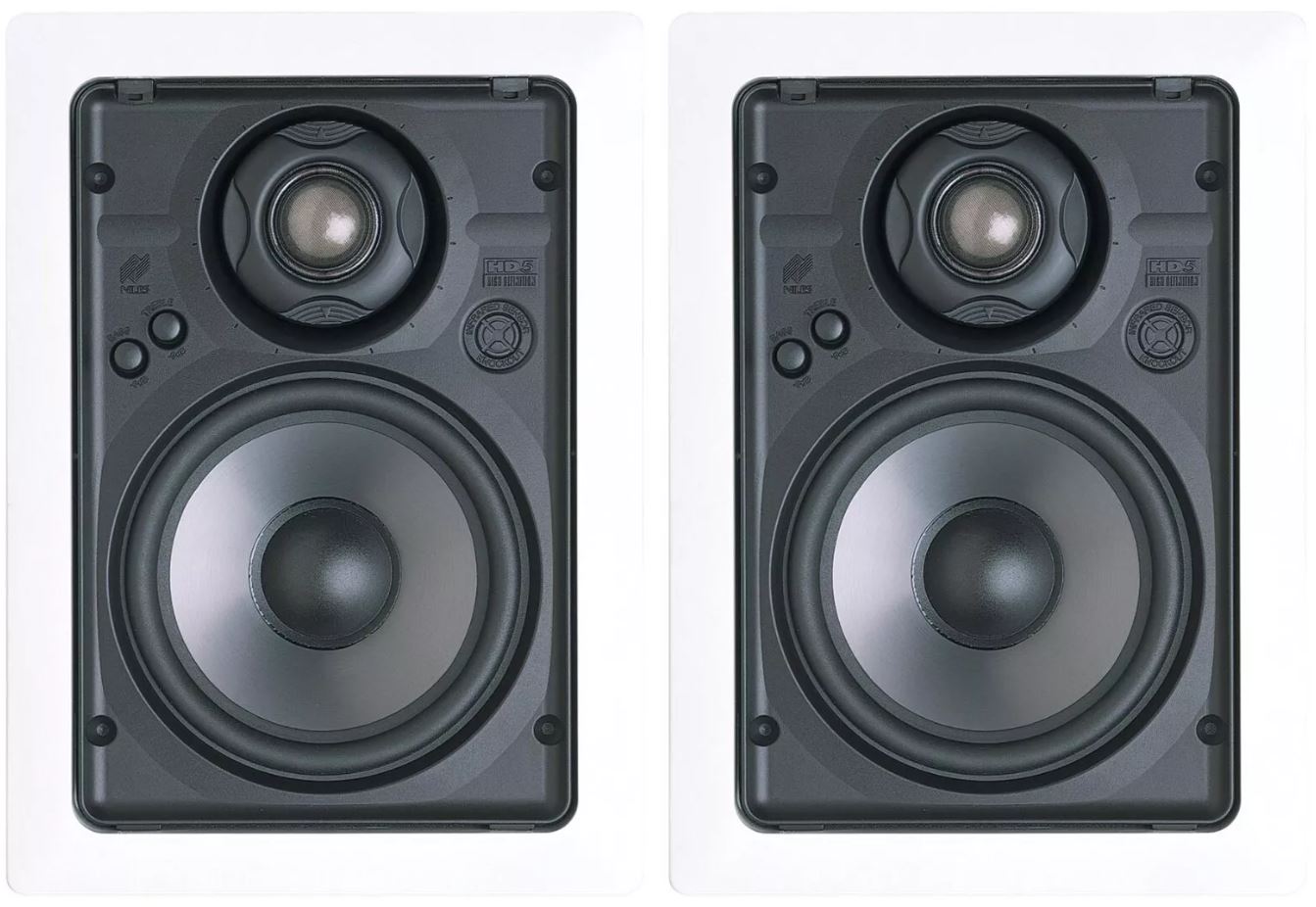

Niles HD5R In-Wall High Definition Loudspeakers offers superior sonic image with advanced technology components designed to extract the subtle nuances in recorded music or the thunderous action in a movie. They are perfect anywhere that quality of sound is the most important consideration.

PIVOTING RATCHETING TWEETER:
Enable installers to precisely adjust the angle of the tweeter for optimum coverage

ADVANCED MATERIAL SCIENCE:
Elevates performance of sub component parts like woofer cones, tweeter diaphragms and crossover components

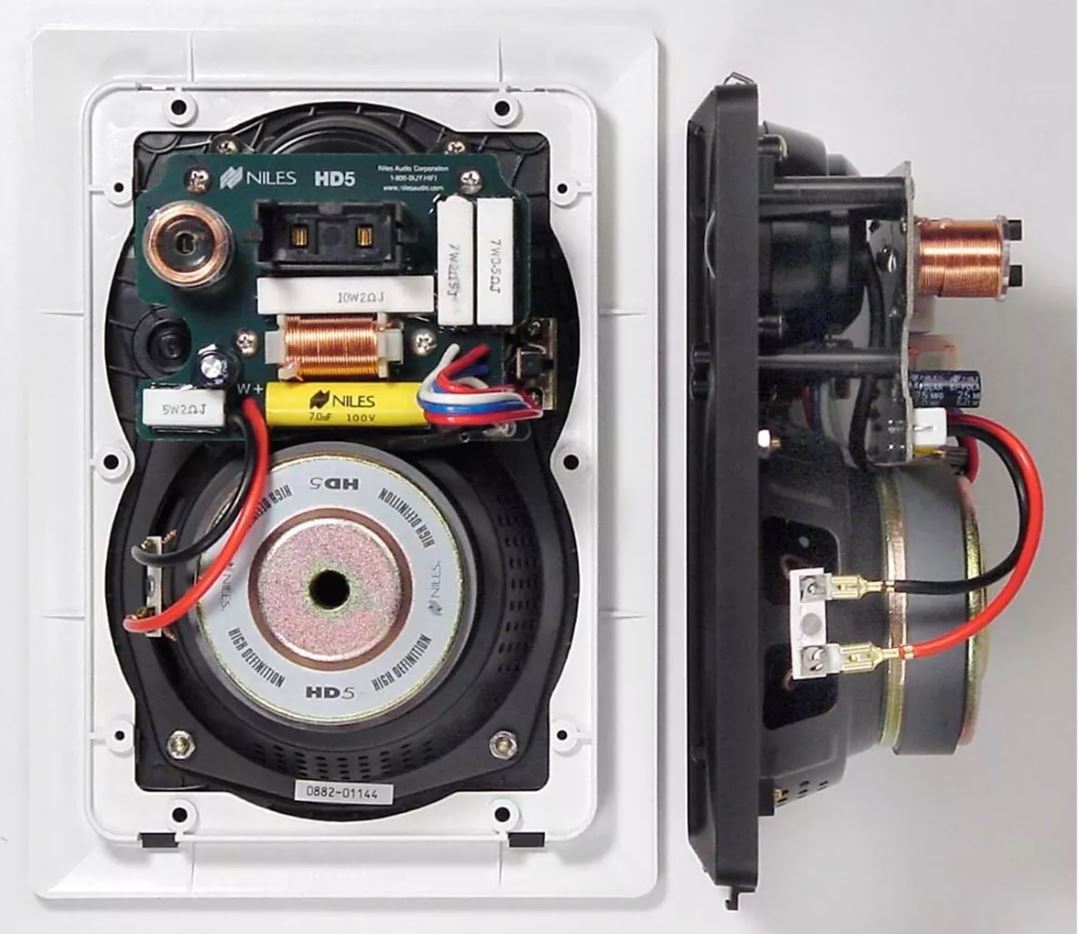

SOPHISTICATED MOTOR AND MAGNETIC DESIGN:
Including vented pole pieces and High BL magnets for deep bass response

IMPEDANCE MANAGEMENT:
Selectable 4 ohm or 8 ohm impedance lets installers optimize the system design

ACOUSTIC FINE TUNING:
Bass and treble controls optimize system sound for every acoustical environment

ANTI-RESONANT WAVE-BRACING TECHNOLOGY:
Prevents transmission of woofer vibrations to the baffle and into the drywall for clear and dynamic bass response

HOME THEATER SPECIFIC MODELS:
Deliver voice-matched cinema performance and are compatible with all HD High Definition models

SNAP-IN SPEAKER-BAFFLES:
Greatly reduces installation time and cost

MODULAR MOUNTING SYSTEM:
Uses innovative mounting technique to simplify installation and ensure uniform contact with wall

BLACK BAFFLES:
Deliver a seamless appearance after the speakers are installed and the grilles are in place

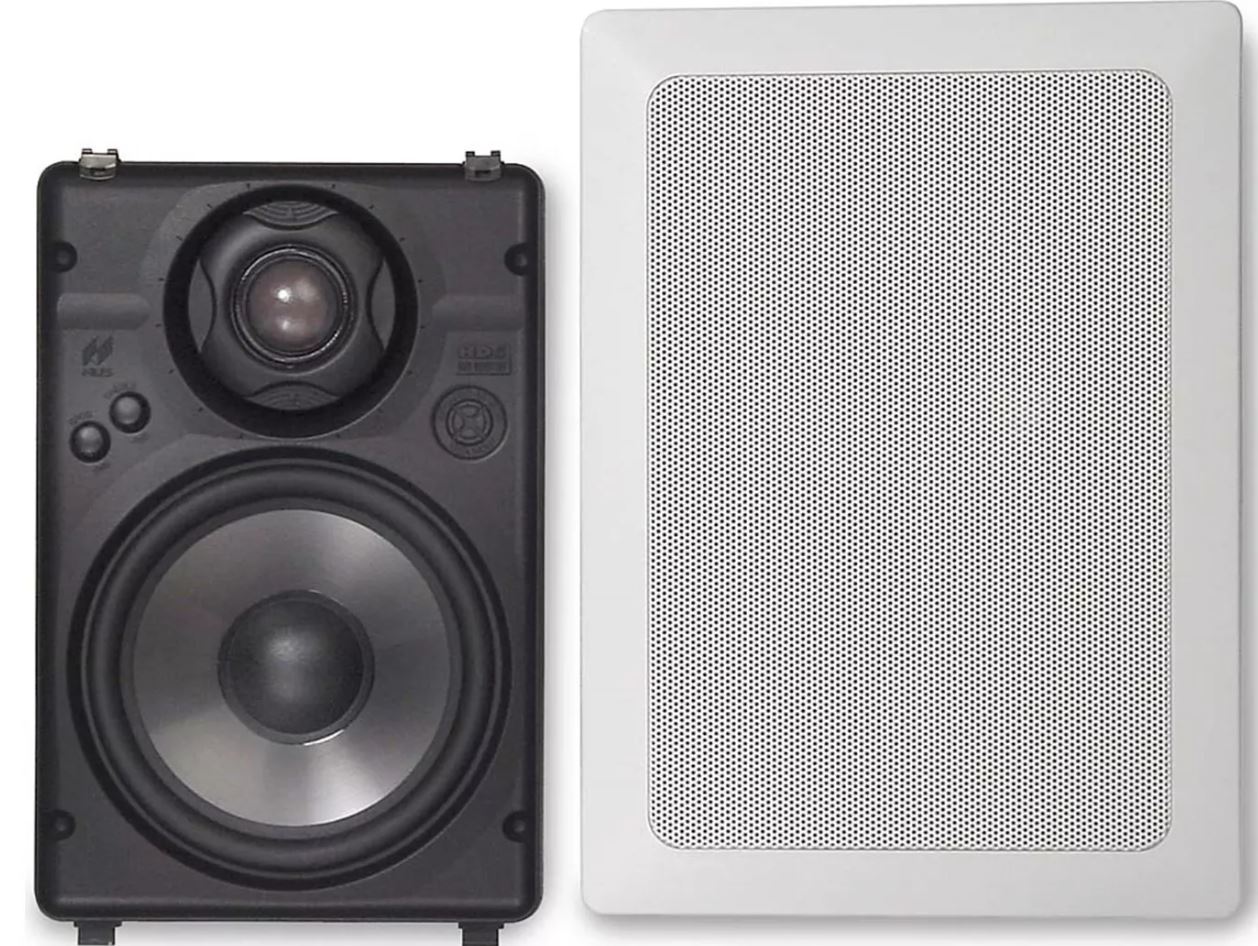

MICROPERF™ RUSTPROOF ALUMINUM GRILLES:
Are acoustically transparent yet won’t rust or discolor

SPECIFICATIONS:

• Impedance: 4 ohms or 8 ohms selectable
• Recommended amplifier power: 10W to 100W
• Frequency response: 60Hz-21kHz +/-3dB
• Sensitivity: 88dB for 2.83V pink noise

PRODUCT DIMENSIONS AND WEIGHT:

• Dimensions H × W × D: 25.1 x 18.1 x 9.2 cm (EA)
• Hole Cutout Dimensions H x W x D: 23 x 16 x 9.2 cm
• Weight: 4 kgs (EA)
