Description

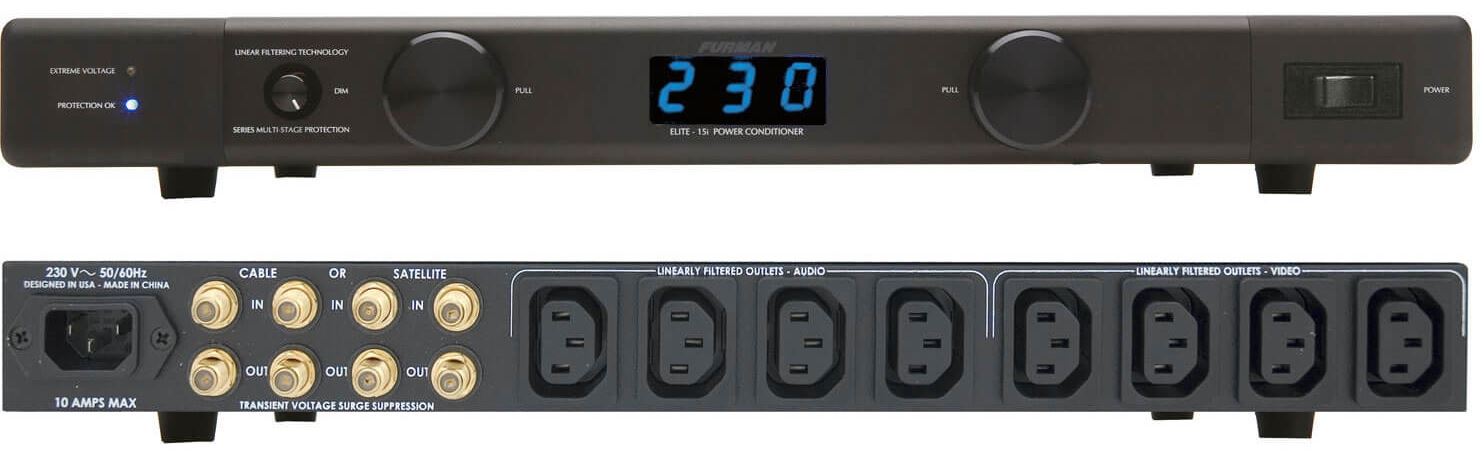

Furman EL10E Power Conditioner
The Furman Elite-10 E i packs Linear Filtering Technology, robust SMP protection, front panel pull-out rack lights, and a digital front panel voltmeter all in a convenient, slim package. Furman’s exclusive Linear Filtering Technology unveils the low-level signals masked by AC line noise. This low-level content is critical because it relays the crucial harmonics and ambience in audio, as well as the depth and clarity in video. The Elite-10 E i’s Linear Filtering Technology dramatically reduces AC noise in a linear fashion across a very wide bandwidth.
The Elite-10 E i also features SMP surge protection, assuring the highest level of protection available. Furman’s SMP has been tested with multiple 3000A/6000V pulses without sustaining any damage – well beyond the capabilities of a typical surge suppressor. The front panel of the Elite-10 E i offers two retractable LED lamps for rack or cabinet illumination. These lamps are ideal for use in a home theater environment, allowing discreet illumination of equipment when theater lights are off. The lights feature a dimmer knob and automatically switch off when pushed into the chassis. Also featured on the front panel is a laboratory-precision grade voltmeter which displays incoming line voltage.
Features
- Series Multi-Stage Protection provides the highest level of protection available.
- Linear Filtering Technology significantly reduces AC line noise.
- Auto-resetting Extreme Voltage Shutdown protects equipment from dangerous overvoltage conditions and automatically resets when voltage returns to safe levels.
- Retractable LED lamps illuminate a cabinet or rack full of equipment.
- Zero ground contamination circuitry protects critical digital components.
- Ultrasonic bi-filtering isolates digital and video circuits from analog components.
- Laboratory precision grade voltmeter displays incoming voltage.
- 4 pairs of HD ready cable/satellite isolated TVSS protected F-connectors.
Specifications
| Current rating: | Input – 10 amp capacity required Output – 10 amps RMS (maximum, all outlets combined – continuous) |
| Linear Noise Attenuation: | Tranverse (Differential) Mode: > 40 dB from 10kHz. – 100kHz > 80 dB from 2 kHz 0 100 kHz. – 1 GHz. (Linear attentuation curve from 0.05 – 100 ohms line impedance) |
| Outlets: | 4 (linearly filtered outlet) 4 (linearly filtered outlets with additional ultrasonic filtering for digital or video components) |
| Transient Voltage Surge Suppression: | 230VAC Line (Series Multi-Stage Protection, non-sacrifictial with Zero Ground Contamination, 266V peak clamping @ 6000V 3000A input) Cable / Satellite (less than .1dB insertion loss) |
| Dimensions: | 54.6mm H x 431.79mm W x 374.65mm D (Standard 1 RU height without feet) |
| Weight: | 5 kg. |
| Power Consumption: | 6 Watts for display and control circuits independent of actual load |
